LA1600 superheterodyne short wave radio kit SWR-3


Assembling sample


Specification
Superheterodyne short wave radio kit
Receive mode : AM
Receiving Range : 6MHz-9MHz
Operating Voltage DC 6V. 4x AA batteries.
Electronic kit, assembly required.


Receiving signal samples of superheterodyne short wave radio kit
Received location : Cofu-city Tokyo, Japan
Antenna:10feet wire antenna

Received time :November 6 21:10JST
China Radio International(location: Zhejiang Jinhua City, China) 33sec (mp3 file:597KB)

Received time :November 6 20:50JST
Voice of Korea(location: Pyongyang, North Korea) 1min 13sec(mp3 file:1141KB)

Received time :November 6 21:00JST
Voice of Korea(location: Pyongyang, North Korea) 44sec(mp3 file:688KB)

Received time :November 9 13:20JST
Radio Nikkei(location: Chiba pref, Japan) 30sec (mp3 file:475KB)

Clip
Received time :November 4 22:00JST

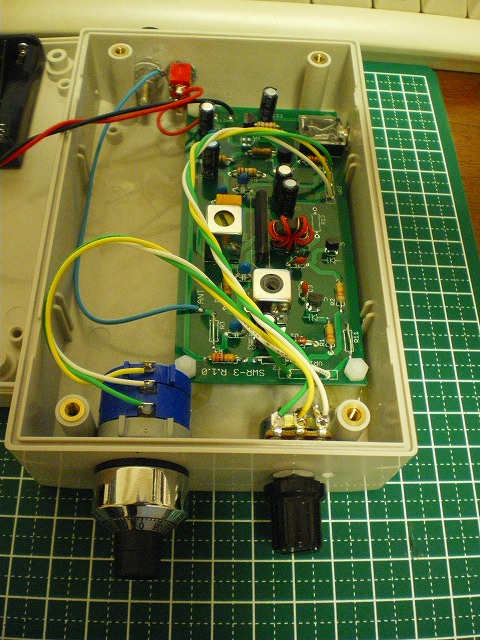

Assembling sample
Case and potentiometer are NOT inclued in this kit


Contents of the kit
